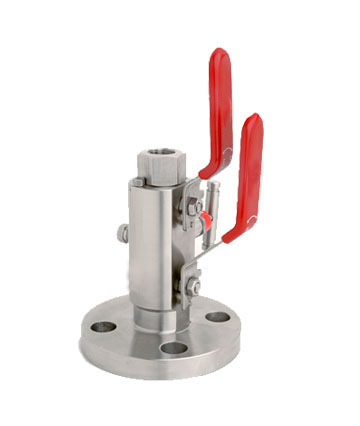

IVB Series

IVB Series

Product Description:

• Made from One piece Body
• Double Block & Bleed
• First isolation: Ball
• Second Isolation:Ball

Product Feature:

• Directly mounted on the Flange of piping connection, hence overall height is reduced.
• Helps to reduce weight and cost.
• Flange connections confirm to ANSI B16.5.
• Working pressure of 6000 psi.
• SS construction with options of packing for high temperature applications.
• Color coded dust caps for identification of Valve type.
• 100% Factory tested.
• Metal to Metal Seating for constant compression.
• Threads rolled and burnished sealing area.
• Differentially hardned Tip to enhance tip life.
